Description

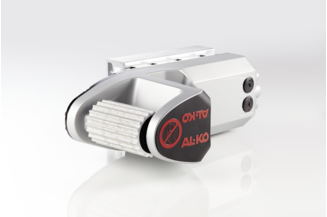

AL-KO MAMMUT manoeuvring system

With the multi-award-winning, fully automatic AL-KO MAMMUT manoeuvring system, you can move and control your caravan or trailer effortlessly, even on your own. The tightest spaces and obstacles up to four centimetres high pose no problem, nor do gradients of up to 28 percent.

The MAMMUT electric manoeuvring aid offers infinitely variable acceleration. Your electronic controls are perfectly integrated in the robust aluminium drive, which protects them against damage and moisture (IP65). The optimised housing has further improved heat dissipation in comparison to the previous model. Longer manoeuvres are therefore possible even at high temperatures and loads, thanks to the extended power-on time.

Manoeuvring with caravan accessories from AL-KO

At AL-KO you will find an extensive range to improve the manoeuvrability of your caravan. Even the entry-level model RANGER,  for example, enables the caravan to be moved with millimetre precision and very little effort.

Jockey wheels prove useful on soft ground, which in combination with the AL-KO manoeuvring handles form the perfect team.

The advantages of the MAMMUT manoeuvring aid at a glance

  • Excellent integration into the chassis
  • The most precise manoeuvring system on the market with maximum ground clearance
  • Smooth manoeuvring without jerking
  • Exact positioning, even when coupling and uncoupling in the tightest of spaces

AL-KO MAMMUT as a powerful manoeuvring system

  • Excellent performance with proven reliability
  • The electronic engagement always ensures optimal contact pressure on the wheel.
  • The manoeuvring system overcomes obstacles up to 4 cm as well as gradients of up to 28% (single-axle trailers) or 15% (two-axle trailers).

More safety with the MAMMUT manoeuvring aid

  • Immediate stop on inclines: Simply release the joystick and the trailer brakes to a halt immediately.

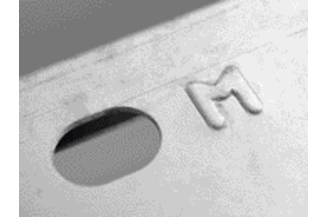

  • Simple plug & play installation: for AL-KO chassis with "M" embossing manufactured 2010 or later

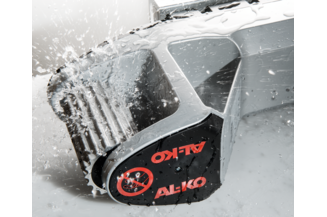

  • Completely sealed, splash-proof drive (IP 65)
  • 5-year warranty: as per AL-KO warranty conditions
Article number Max. Climbing capacity Type Max. Weight vehicle Weight
1730367 10% at 2500 kg total weight 15% with 2000 kg total weight 17% at 1800 kg total weight 28% at 1200 kg total weight Single axle M20 2500 kg 32 kg
1730368 10% at 2500 kg total weight 15% with 2000 kg total weight 17% at 1800 kg total weight 28% at 1200 kg total weight Single axle S21 2500 kg 42 kg
1730369 10% at 2500 kg total weight 15% with 2000 kg total weight 17% at 1800 kg total weight 28% at 1200 kg total weight Single axle S22 2500 kg 42 kg
1730287 15% at 3000 kg total weight Tandem axle TM400 3000 kg 67 kg
1730238 15% at 3000 kg total weight Tandem axle TM401 3000 kg 74 kg
1730054 15% at 3000 kg total weight Tandem axle TM402 3000 kg 74 kg
1730288 15% at 3000 kg total weight Tandem axle TM410 3000 kg 77 kg
1730289 15% at 3000 kg total weight Tandem axle TM420 3000 kg 77 kg
1730237 15% at 3000 kg total weight Tandem axle TS411 3000 kg 84 kg
1730233 15% at 3000 kg total weight Tandem axle TM400 3000 kg 84 kg
1730049 15% at 3000 kg total weight Tandem axle TS422 3000 kg 84 kg
Customer centre

AL-KO MAMMUT manoeuvring system

The AL-KO MAMMUT manoeuvring system is available for single and tandem axle caravans.

FAQ

Most AL-KO chassis from model year 2010 or later come with a special hole designed to house the AMS MAMMUT.
We recommend gel or AGM batteries with suitable charging technology and a minimum capacity of 80 Ah. An AGM battery of at least 100 Ah is ideal for providing additional reserves for applications such as lighting or water supply. For spiral cell AGM batteries, such as Optima, the capacity should be at least 66 Ah.
Unfortunately not. This would void the general operating license. However, in many cases you can use the “bottom installation” variant.
Installing it in front of the axle gives the MAMMUT manoeuvring aid better protection from stones and spray water. Installation behind the axle is also possible.
We recommend that you remove the battery from the vehicle and then proceed as follows:
  • Store the battery fully charged.
  • Choose a cool, dry storage location.
  • Recharge the battery for 24 hours every 2 months.
  • In principle it can be installed in almost any caravan chassis. You can find a detailed overview in the variant comparison.
    Although it is possible to install the MAMMUT yourself using the enclosed instructions, we recommend having it installed by a specialist company in your area.
    AL-KO service centres are available throughout Europe.
    Yes, with a spanner (13 mm) or a standard screwdriver depending on the model version.
    NB: Remove fuses and do not use electric screwdrivers such as cordless screwdrivers!
    No, this is not necessary thanks to the enclosed general operating permit.
